LSB-MSL32-IR Spectrally Tunable Multispectral Light Box is a high-performance multispectral illumination system integrating both visible and near-infrared (NIR) illumination capabilities. Equipped with 32 independently controllable LED spectral channels, the system covers a broad wavelength range from 380–980 nm and integrates TL84 and CWF fluorescent light sources along with a built-in high-precision spectroradiometer, enabling accurate simulation of standard illuminants, customized spectral profiles, and near-infrared lighting environments.

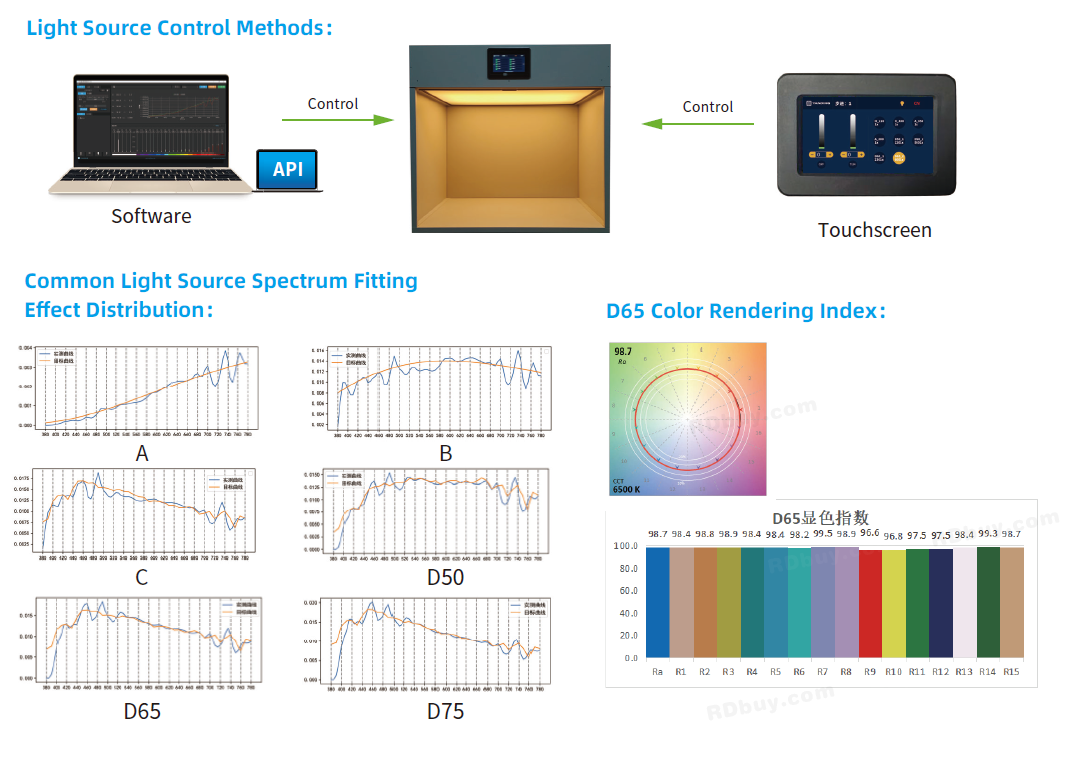

By combining advanced automatic spectral matching and auto-calibration technologies, the system can precisely reproduce standard illuminants including CIE A, Horizon, D50, D65, and D75. Each LED channel supports 60,000-level independent intensity adjustment, enabling high-precision spectral generation, color temperature control, and illumination adjustment.
The LSB-MSL32-IR is widely used for color reproduction evaluation, white balance testing, and image quality assessment of advanced vision systems, including RGB cameras, RGB-IR cameras, near-infrared imaging systems, ToF sensors, LiDAR, ADAS cameras, and smart cockpit vision systems. It provides a stable, accurate, and repeatable controlled lighting environment for next-generation imaging system development and validation.
Application Scenarios
Daylight Simulation: Accurately recreate natural daylight for precise testing.
Multispectral Reproduction: Generate various spectral profiles to simulate real-world lighting conditions.
Color Rendering Assessment: Test the color fidelity of objects under diverse lighting.
Whiteness Evaluation: Evaluate the whiteness of materials using fine-tuned lighting controls.
Standard and Monochromatic Light Source Switching: Easily switch between standard light sources and single-wavelength monochromatic lights.
Key Features

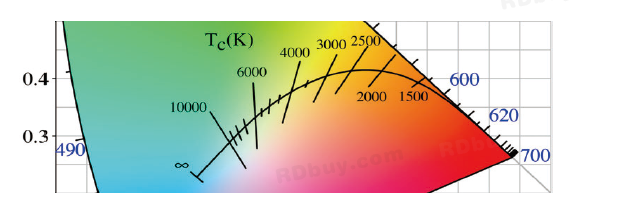

■ Blackbody Radiation Trajectory simulation
Precisely reproduces standard light sources with color temperatures ranging from 2000K to 20000K.

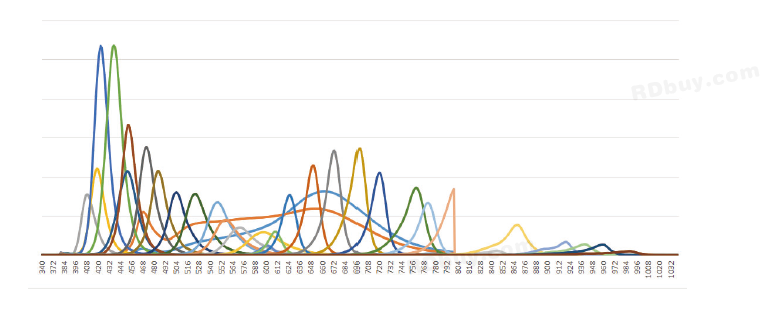

■ Multispectral Adjustability
Features 32 adjustable channels covering wavelengths from 380-980nm, allowing flexible light source simulation and reproduction.

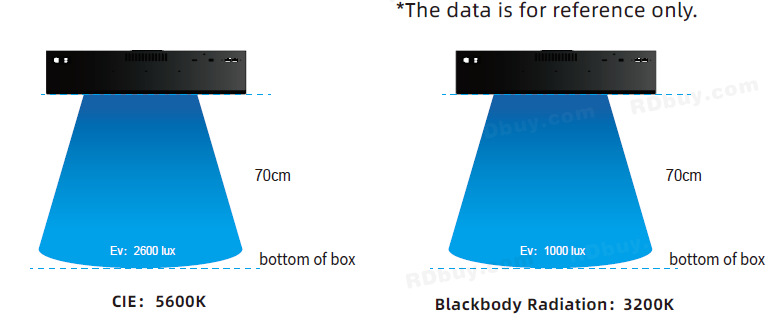

■ Adjustable Illuminance
Enables illuminance adjustments while maintaining consistent light quality.

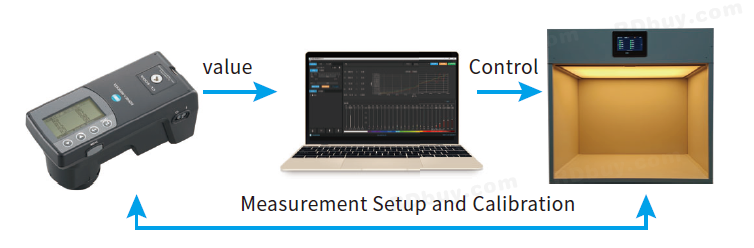

■ Accurate and Rapid Feedback system
Feedback is achieved through an external color sensor compensating for light quality fluctuations caused by LED aging and varying usage environments, ensuring stable light output.
■ Dynamic Lighting
Allows the flexible arrangement of lighting sequences and timing in dynamic lighting scenarios.
■ Lighting Scenario Simulation
Capable of reproducing any measured or imported Spectral Power Distribution (SPD), facilitating light consistency across different facilities.
■ Flicker-free
Provides a uniform, flicker-free illumination environment, ideal for high-precision testing.
■ User-Friendly Software
Simple and intuitive control software, with customizable options to suit user-specific requirements.

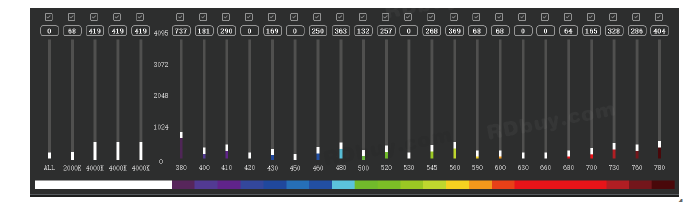

■ Single-Channel control
Allows individual control of each LED channel, enabling custom lighting configurations for specific needs.
■ Long lifespan and excellent long-term stability
With a lifespan several times longer than traditional fluorescent lamps, the advanced cooling system ensures excellent long-term stability of the light source.
■ Flexible Installation Options
Supports a variety of installation methods such as observation boxes, ceiling mounts, and custom brackets to suit different application environments.

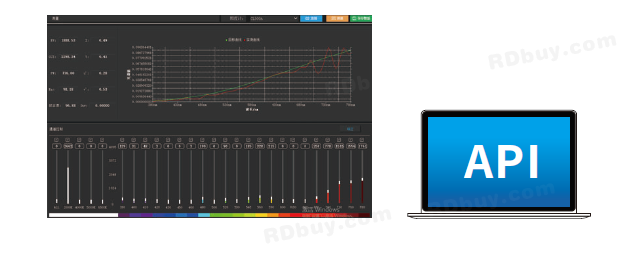

Software Main Interface
(Optional Software Package)
【Features】
Blackbody & daylight spectrum matching simulation
Light source preset storage
Single-channel control
Multi-light source cascade control
Provides C/C++ API with Python support, compatible with Windows 10/11.
【Functions】
CIE standard light source generation
External spectral curve simulation
Dynamic lighting control
Single-channel control
Light source cascade control with hardware and software storage, compatible with CL500A.
